NC Fully Automatic Single Face Corrugated Sheet Cutter, Slitter, Stacker Machine

NC Fully Automatic Single Face Corrugated Sheet Cutter, Slitter, Stacker Machine

The fully automatic sheet cutting machine can neatly stack sheets, no matter the number of pieces that need to be stacked. The slitting component uses a manual bowl shaped knife, with an optional electro motion thin blade.

It uses a high quality servo motor and German advanced servo drivers in order to achieve high precision cutting with a lower energy consumption and a 1mm cutting error at steady speeds. The equipment also offers a spray lubrication system, pneumatic control, batch replacement, and stacking replacement, all done automatically. The stacking component uses a pneumatic lifting paper bracket with a maximum lifting height of 300mm. The paper can be automatically delivered in a transversal direction when the required stacking quantity is achieved.

Technical Specifications

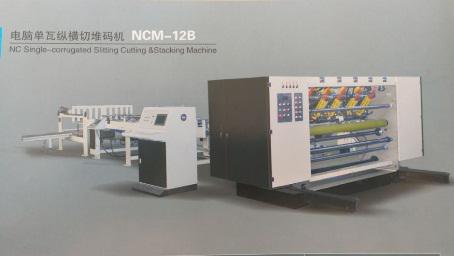

NCM-12B Fully-auto Single-corrugated Cutter, Slitter & Stacker
Work width:1800mm-2200mm
Max. stacking height: 250mm
Max. sheet length: 1600mm
Max. design speed:120m/min
