Water Based Ink Printing Slotting Machine

Home » Products » Corrugated Cardboard Printing Slotting Machine » Water Based Ink Printing Slotting Machine

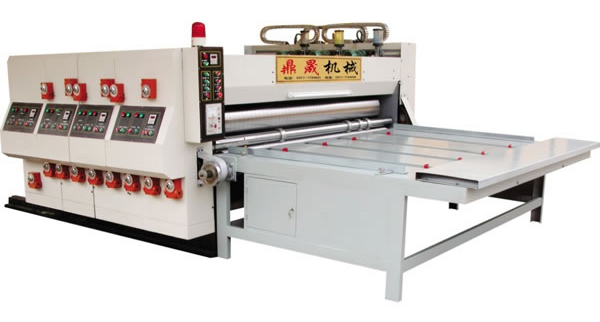

Water Based Ink Printing Slotting Machine

The water based ink printing slotting machine comes with domestically famous electrical components. It is crosshead shoe driven, and spray lubricated in a circulating way. All the roller shafts are chrome plated and the planetary gear mechanism is used for phase adjustment. Additionally, the phase adjustment system comes with digital input and return-to-zero functions.

Technical Specifications
Model Diameter of Steel RollerLength of Steel RollerColor Number
YKS Φ300 1800-2400 1-5
YKS Φ400 1800-2400 1-5
YKS Φ480 2000-2800 1-5
YKS Φ530 2000-2800 1-5

Owing to the modular construction, multi-color printing groups can be freely combined together. The slotting section of the water based ink printing slotting machine features synchronous adjustment of the arc distance between the front and back slotting blades on the same upper knife holder. This product also comes with a series of functions including pneumatic printing plate lifting, pneumatic locking, pneumatic ink supplying, electric ink distributing, clutching by the motor, braking by pneumatic clutch, photoelectric counting, etc. It uses premium quality rubber roller and anilox roller to print the cardboard with elegant designs. Furthermore, based on the high efficiency, this product can be applied to common cartons or small sized ones.
